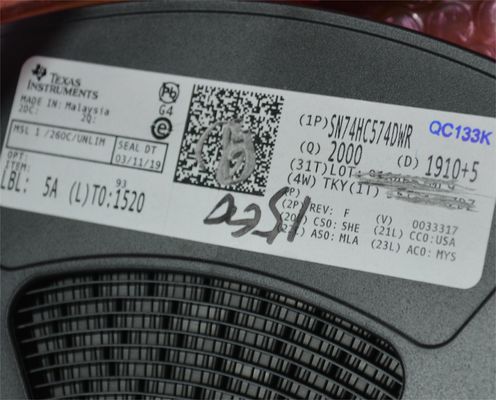

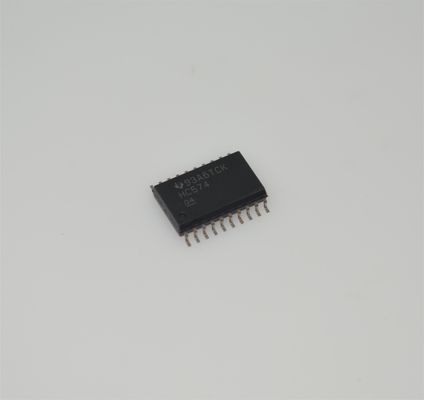

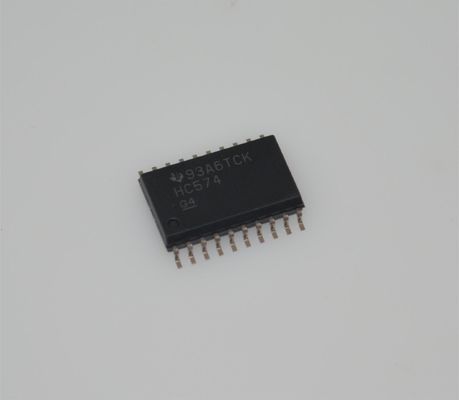

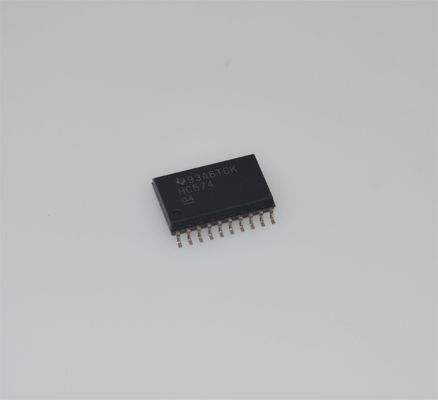

SN74HC574DWR Octal D-Type Flip-Flop 3-State Outputs 6ns Propagation Delay SOIC-20 2-6V Supply -40°C to +85°C

SN74HC574DWR Octal D-Type Flip-Flop 3-State Outputs 6ns Propagation Delay SOIC-20 2-6V Supply -40°C to +85°C

Features

• Wide Operating Voltage Range of 2 V to 6 V

• High-Current 3-State Noninverting Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads

• Low Power Consumption, 80-µA Max ICC

• Typical tpd = 22 ns

• ±6-mA Output Drive at 5 V

• Low Input Current of 1-µA Max

• Bus-Structured Pinout

• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Description

These octal edge-triggered D-type flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
