CSD17309Q3 30V N-Channel NexFET™ MOSFET with 3.6mΩ RDS(on) 40A Continuous Current 175°C Rating Ultra-Low Qg 3mm×3mm SON Package AEC-Q101 Qualified & Pb-Free

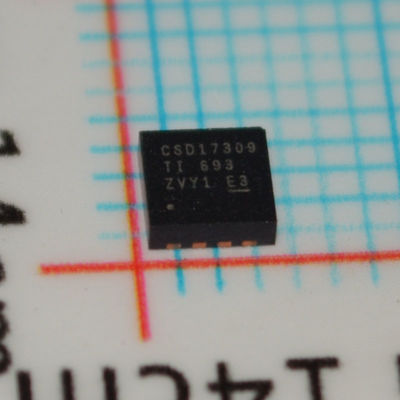

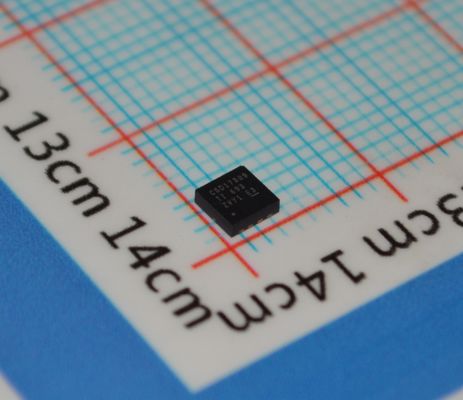

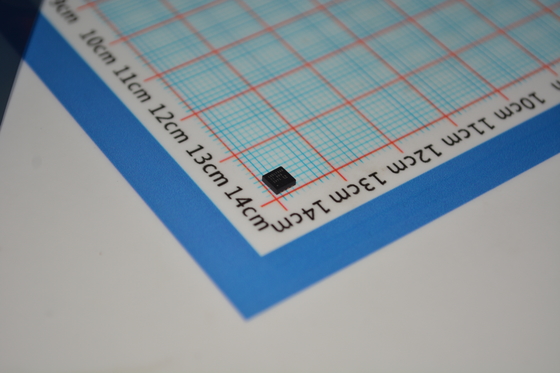

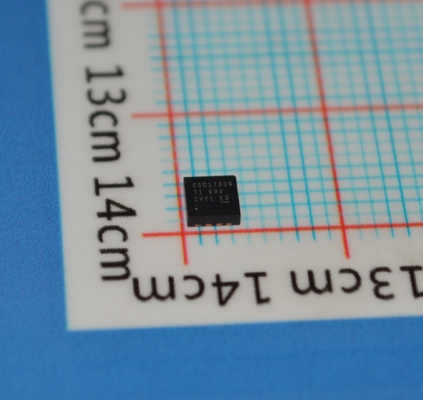

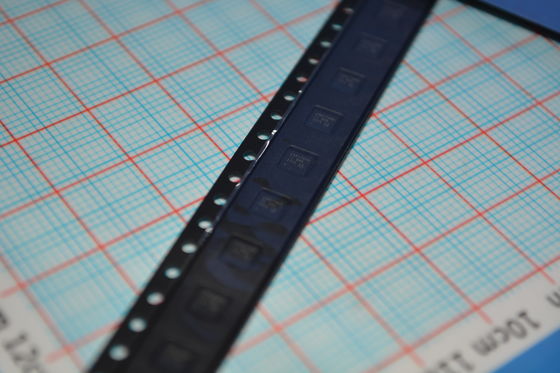

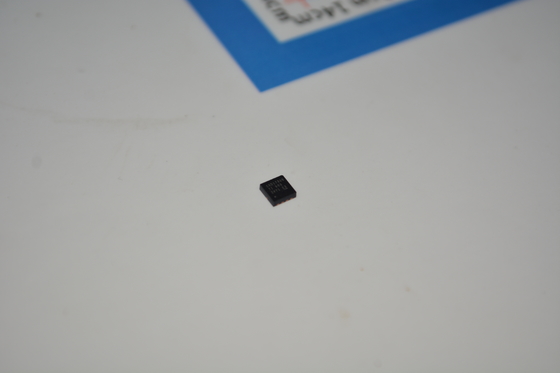

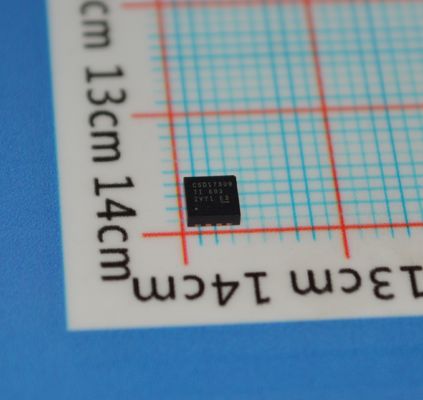

Ampliación de imagen : CSD17309Q3 30V N-Channel NexFET™ MOSFET with 3.6mΩ RDS(on) 40A Continuous Current 175°C Rating Ultra-Low Qg 3mm×3mm SON Package AEC-Q101 Qualified & Pb-Free

Datos del producto:

Place of Origin:	China
Nombre de la marca:	Texas Instruments
Certificación:	CE, GCF, ROHS
Model Number:	CSD17309Q3

Pago y Envío Términos:

Minimum Order Quantity:	1
Precio:	negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contacto

Descripción detallada del producto

Function:	Step-Up, Step-Down	Output Configuration:	Positive or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number of Outputs:	1
Resaltar:	30V N-Channel MOSFET with 3.6mΩ RDS(on) , AEC-Q101 qualified NexFET™ MOSFET , 3mm×3mm SON package MOSFET

CSD17309Q3 30V N-Channel NexFET™ MOSFET with 3.6mΩ RDS(on) 40A Continuous Current 175°C Rating Ultra-Low Qg 3mm×3mm SON Package AEC-Q101 Qualified & Pb-Free

Features

• Optimizedfor5VGateDrive

• Ultra-LowQgandQgd

• LowThermalResistance

• AvalancheRated

• PbFreeTerminalPlating

• RoHSCompliant

• HalogenFree

• SON3.3mm×3.3mmPlasticPackage

Applications

• NotebookPointofLoad

• PointofLoadSynchronousBuckinNetworking,

Telecom,andComputingSystems

Description

This 30 V,4.2 m NexFET power MOSFET is designed to minimize losses in power conversion applications;and optimized for5Vgate drive applications.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	5.4mOhm @ 18A, 8V
Vgs(th) (Max) @ Id	1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1440 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (3.3x3.3)
Package / Case	8-PowerTDFN
Base Product Number	CSD17309

Drawing

Our advantage :

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^

Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,

The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
