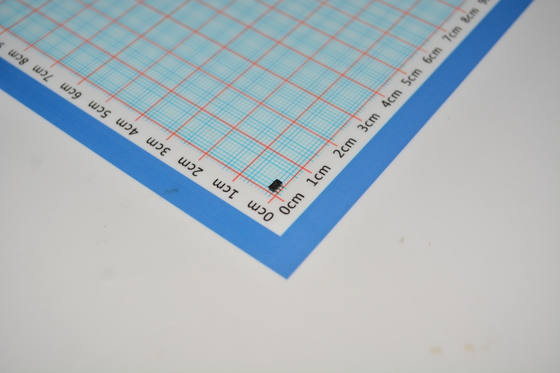

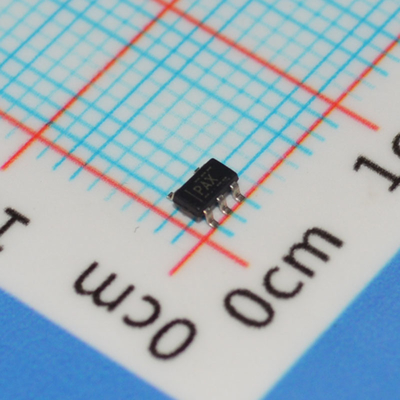

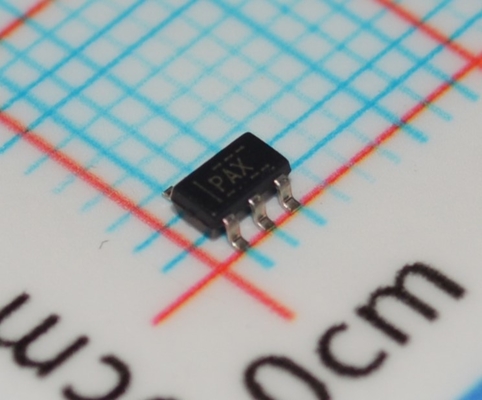

TLV70450DBVR 5V 150mA Ultra-Low IQ (300nA) LDO with High PSRR (70dB) 2% Accuracy Stable with 1μF Ceramic Capacitor Enable Pin and Thermal Protection in SOT-23 Package

TLV70450DBVR 5V 150mA Ultra-Low IQ (300nA) LDO with High PSRR (70dB) 2% Accuracy Stable with 1μF Ceramic Capacitor Enable Pin and Thermal Protection in SOT-23 Package

Features

• Input voltage range:– 2.5 V to 24 V (30 V max for new chip only)

• Available output voltage options:– Fixed: 1.8 V to 5 V

• Output current: Up to 150 mA

• Very low IQ: 3.4 μA at 100-mA load current

• Stable with output capacitor ≥ 0.47 μF

• Overcurrent protection

• Package: 5-pin SOT-23 (DBV)

• Operating junction temperature: –40°C to +125°C

Applications

• Home and building automation

• Retail automation and payment

• Grid infrastructure

• Medical applications

• Lighting applications

Description

The TLV704 low-dropout (LDO) linear voltage regulator is a low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TLV704 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.

The TLV704 LDO supports a low dropout of typically 850 mV at 100 mA of load current. The low quiescent current (3.4 μA typically) is stable over the entire range of output load current (0 mA to 150 mA). The TLV704 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault.

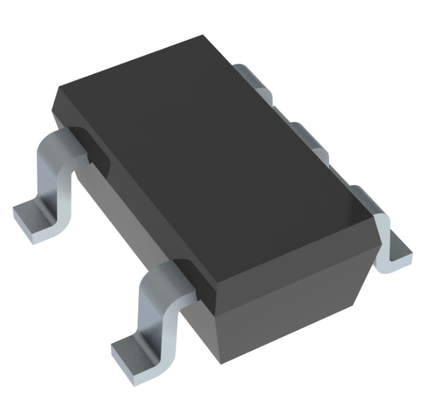

The TLV704 is available in a 2.90-mm × 1.60-mm SOT23-5 package, which is useful for cost-effective board manufacturing.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
