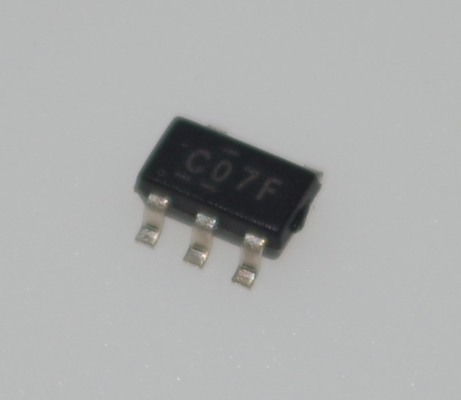

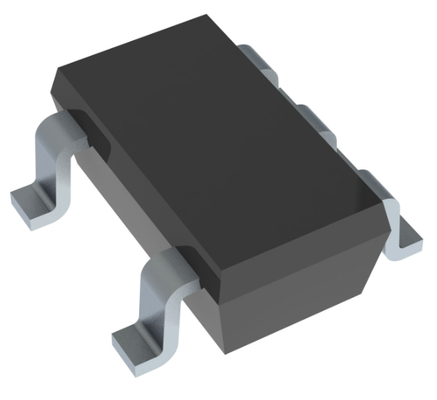

SN74LVC1G07 Single Buffered Open-Drain Gate 1.65V to 5.5V Wide VCC 32mA Output Low Power SOT-23-5 Tiny & Efficient Solution

SN74LVC1G07 Single Buffered Open-Drain Gate 1.65V to 5.5V Wide VCC 32mA Output Low Power SOT-23-5 Tiny & Efficient Solution

Features

• Available in the ultra small 0.64mm2 package (DPW) with 0.5mm pitch

• Supports 5V VCC operation

• Input and open-drain output accept voltages up to 5.5V

• Can translate up or down

• Maximum tpd of 4.2ns at 3.3V

• Low power consumption, 10µA maximum ICC

• ±24mA output drive at 3.3V

• Ioff supports live insertion, partial-power-down mode, and back-drive protection

• Latch-up performance exceeds 100mA per JESD 78, Class II

• ESD protection exceeds JESD 22

  – 2000V Human-body model (A114-A)

  – 200V Machine model (A115-A)

  – 1000V Charged-device model (C101)

Applications

• AV receiver

• Blu-ray player and home theater

• DVD recorder and player

• Desktop or notebook PC

• Digital radio or internet radio player

• Digital Video Camera (DVC)

• Embedded PC

• GPS: personal navigation device

• Mobile internet device

• Network projector front end

• Portable media player

• Pro audio mixer

• Smoke detector

• Solid State Drive (SSD): enterprise

• High-definition (HDTV)

• Tablet: enterprise

• Audio dock: portable

• DLP front projection system

• DVR and DVS

• Digital Picture Frame (DPF)

• Digital still camera

Description

This single buffer/driver is designed for 1.65V to 5.5V VCC operation.

The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired AND functions. The maximum sink current is 32mA.

The SN74LVC1G07 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8mm × 0.8mm.

INFORMATION

Drawing
