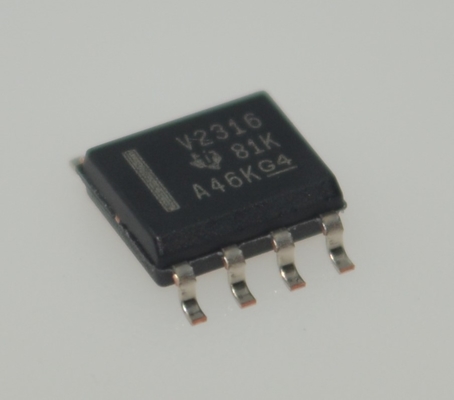

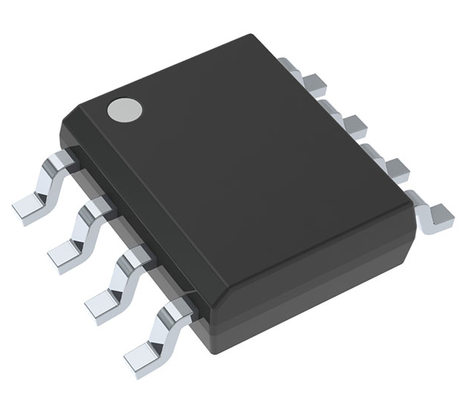

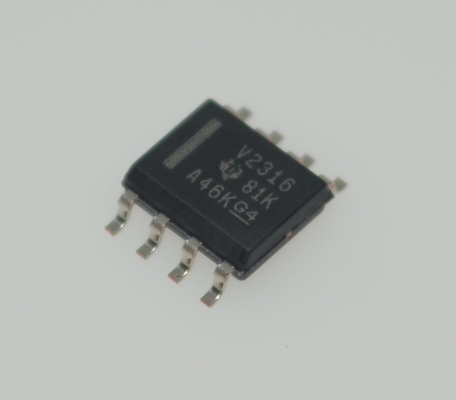

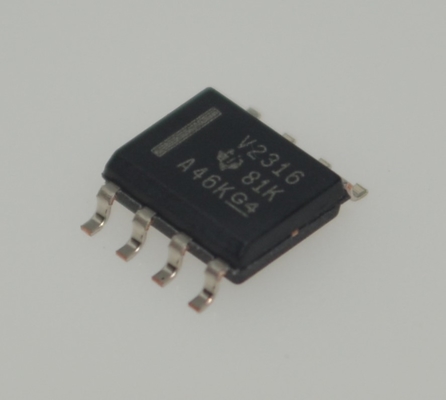

TLV2316IDR 1.8V Low-Voltage Low-Power 300µA Op Amp with 3MHz Bandwidth Rail-to-Rail I/O 0.3V/µs Slew Rate -40 to 125°C Range Tiny SOIC-8 Package

TLV2316IDR 1.8V Low-Voltage Low-Power 300µA Op Amp with 3MHz Bandwidth Rail-to-Rail I/O 0.3V/µs Slew Rate -40 to 125°C Range Tiny SOIC-8 Package

Features

• Unity-GainBandwidth:10MHz

• LowIQ:400µA/ch

  –ExcellentPower-to-BandwidthRatio

  –StableIQOverTemperatureandSupply Range

• WideSupplyRange:1.8Vto5.5V

• LowNoise:12nV/√Hzat1kHz

• LowInputBiasCurrent:±10pA

• OffsetVoltage:±0.75mV

• Unity-GainStable

• InternalRFI/EMIFilter

• ExtendedTemperatureRange:–40°Cto+125°C

Applications

• Battery-PoweredInstruments:

  –Consumer, Industrial,Medical

  –Notebooks,PortableMediaPlayers

• SensorSignalConditioning

• BarcodeScanners

• ActiveFilters

• Audio

Description

TheTLV316(single),TLV2316(dual), andTLV4316 (quad)devicescompriseafamilyofgeneral-purpose, low-power operational amplifiers. Features such as rail-to-rail input and output swings, low quiescent current (400 μA/ch typical) combinedwith awide bandwidthof10MHz,andvery-lownoise(12nV/√Hz at 1kHz)make this familyattractive foravarietyof applications that require a good balance between cost and performance. The low input bias current supports operational amplifiers that are used in applicationswithmegaohmsourceimpedances.

Therobustdesignof theTLVx316providesease-of use to the circuit designer—a unity-gain stable, integratedRFI/EMI rejection filter, nophasereversal in overdrive condition, and high electrostatic discharge(ESD)protection(4-kVHBM).

These devices are optimized for low-voltage operationas lowas1.8V(±0.9V)andup to5.5V (±2.75V). This latest additionof low-voltageCMOS operational amplifiers to theportfolio, inconjunction withtheTLVx313andTLVx314series,offerafamily of bandwidth, noise, andpower options tomeet the needsofawidevarietyofapplications.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
