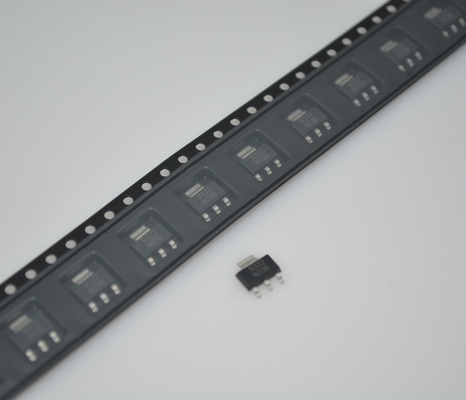

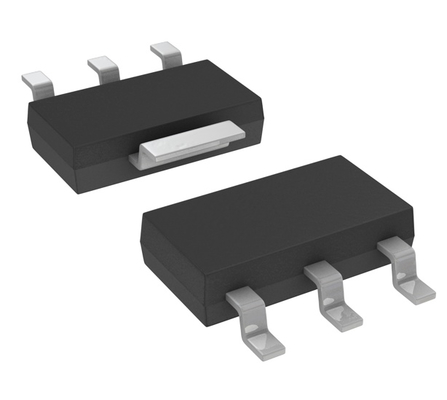

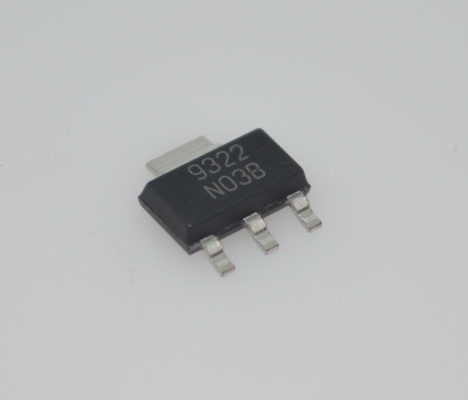

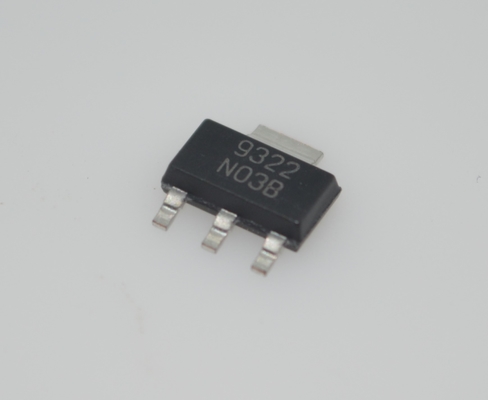

LM1117IMPX-ADJ/NOPB Adjustable 1.25-13.8V 800mA LDO Regulator with 1.2V Dropout 1% Accuracy Current/Thermal Protection Stable with Ceramic Caps SOT-223 Package -40°C to +125°C Range

LM1117IMPX-ADJ/NOPB Adjustable 1.25-13.8V 800mA LDO Regulator with 1.2V Dropout 1% Accuracy Current/Thermal Protection Stable with Ceramic Caps SOT-223 Package -40°C to +125°C Range

Features

• For a newer drop-in alternative, see the TLV1117

• For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761

• Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions

• Space-saving SOT-223 and WSON packages

• Current limiting and thermal protection

• Output current: 800 mA

• Line regulation: 0.2% (maximum)

• Load regulation: 0.4% (maximum)

• Temperature range:

– LM1117: 0°C to +125°C

– LM1117I: –40°C to +125°C

Applications

• AC drive power stage modules

• Merchant network and server PSU

• Industrial AC/DC

• Ultrasound scanners

• Servo drive control modules

Description

The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.

The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 V to 13.8 V with only two external resistors. In addition, the device is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V.

The LM1117 offers current limiting and thermal shutdown. The circuit includes a Zener trimmed band gap reference to assure output voltage accuracy to within ±1%.

A minimum of 10-µF tantalum capacitor is required at the output to improve the transient response and stability.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
