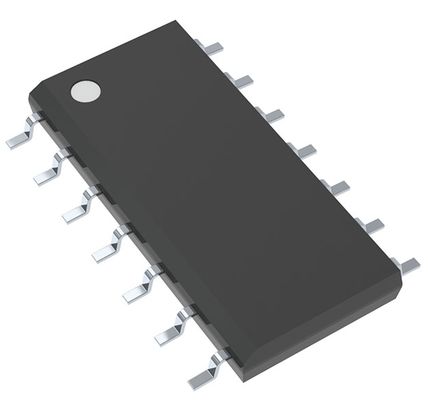

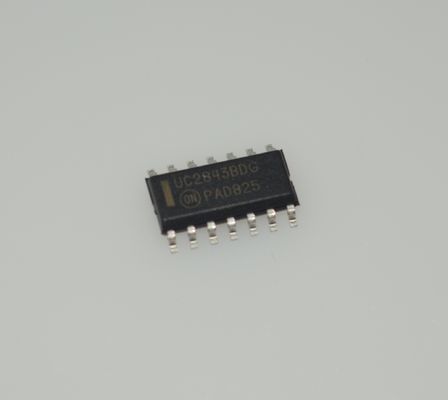

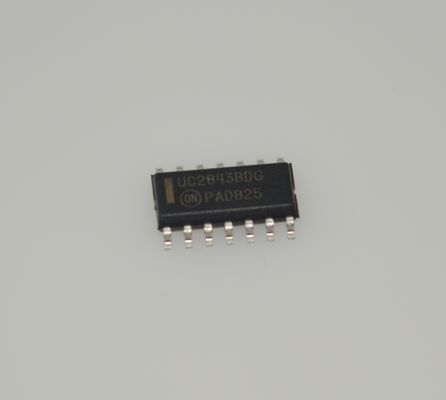

UC2843BDG Current-Mode PWM Controller 500kHz Operation High Drive Output Wide 8V-30V Input Precision Reference Low Cost Robust Protection Versatile for Power Supplies

UC2843BDG Current-Mode PWM Controller 500kHz Operation High Drive Output Wide 8V-30V Input Precision Reference Low Cost Robust Protection Versatile for Power Supplies

Features

• Trimmed Oscillator for Precise Frequency Control

• Oscillator Frequency Guaranteed at 250 kHz

• Current Mode Operation to 500 kHz

• Automatic Feed Forward Compensation

• Latching PWM for Cycle−By−Cycle Current Limiting

• Internally Trimmed Reference with Undervoltage Lockout

• High Current Totem Pole Output

• Undervoltage Lockout with Hysteresis

• Low Startup and Operating Current

• This is a Pb−Free and Halide−Free Device

Applications

1:Off-line switching power supplies (AC-DC converters): Power adapters (e.g., laptops, monitors), industrial power systems, consumer electronics (TVs, audio equipment).

2:DC-DC converters: Boost converters (battery voltage step-up), flyback converters (isolated power supplies up to 100W-150W).

Description

The UC3842B, UC3843B series are high performance fixed frequency current mode controllers. They are specifically designed for Off−Line and DC−DC converter applications offering the designer a cost−effective solution with minimal external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.

Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, cycle−by−cycle current limiting, programmable output deadtime, and a latch for single pulse metering.

These devices are available in an 8−pin dual−in−line and surface mount (SOIC−8) plastic package as well as the 14−pin plastic surface mount (SOIC−14). The SOIC−14 package has separate power and ground pins for the totem pole output stage.

The UCX842B has UVLO thresholds of 16 V (on) and 10 V (off), ideally suited for off−line converters. The UCX843B is tailored for lower voltage applications having UVLO thresholds of 8.5 V (on) and 7.6 V (off).

INFORMATION

Drawing
