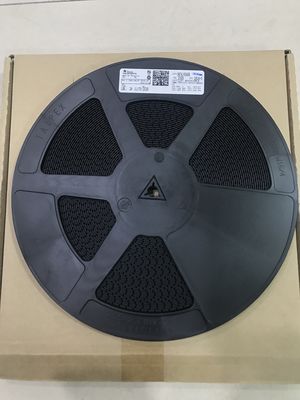

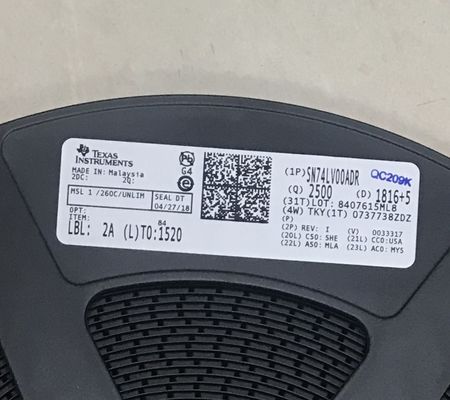

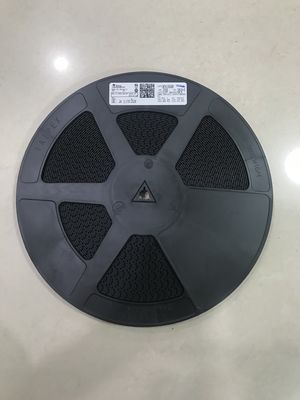

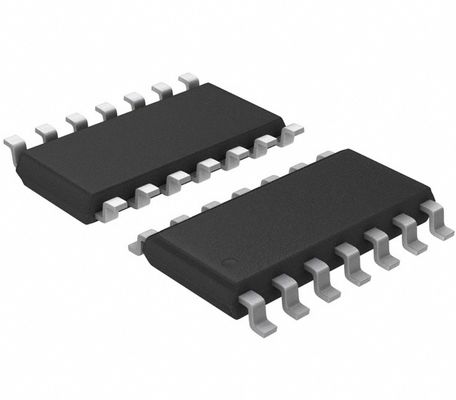

SN74LV00ADR 4-Channel 2-Input NAND Gate with Wide 2V to 5.5V Supply 8ns Speed Low Power CMOS Technology High Noise Immunity Industry-Standard SOIC-14 Package

SN74LV00ADR 4-Channel 2-Input NAND Gate with Wide 2V to 5.5V Supply 8ns Speed Low Power CMOS Technology High Noise Immunity Industry-Standard SOIC-14 Package

Features

• 2-V to 5.5-V VCC Operation

• Maxtpd of 6.5 ns at 5 V

• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESDProtection Exceeds JESD 22– 2000-V Human-Body Model– 200-V Machine Model– 1000-V Charged-Device Model

Applications

• Power Infrastructure

• Network Switch

• Automotive Infotainment

• Servers

Description

These quadruple 2-input positive-NAND gates are designed for 2-V to 5.5-V VCC operation. The SNx4LV00A devices perform the boolean function Y = A ● B or Y = A + B in positive logic.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
