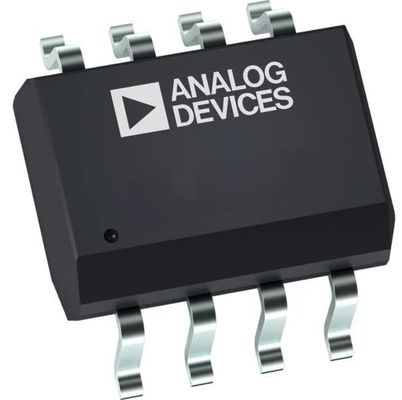

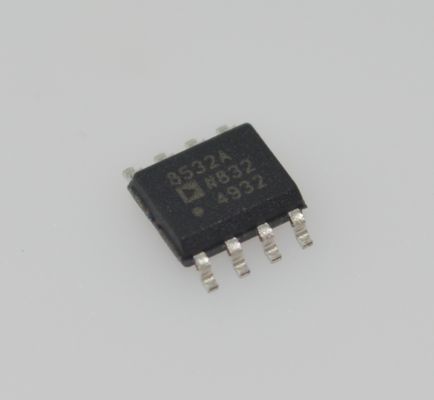

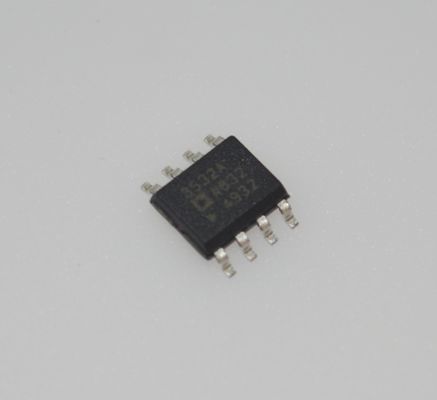

AD8532ARZ Dual 250mA Rail-to-Rail Output Op Amp 3V to 6V Single Supply Low Cost Drives Heavy Capacitive Loads Ideal for Portable Equipment Audio and USB Devices

AD8532ARZ Dual 250mA Rail-to-Rail Output Op Amp 3V to 6V Single Supply Low Cost Drives Heavy Capacitive Loads Ideal for Portable Equipment Audio and USB Devices

FEATURES

Single-supply operation: 2.7 V to 6 V

High output current: ±250 mA

Low supply current: 750 μA/amplifier

Wide bandwidth: 3 MHz

Slew rate: 5 V/μs

No phase reversal

Low input currents

Unity gain stable

Rail-to-rail input and output

APPLICATIONS

Multimedia audio

LCD drivers

ASIC input or output amplifiers

Headphone drivers

DESCRIPTION

The AD8531, AD8532, and AD8534 are single, dual, and quad rail-to-rail input/output single-supply amplifiers featuring 250 mA output drive current. This high output current makes these amplifiers excellent for driving either resistive or capacitive loads. AC performance is very good with 3 MHz bandwidth, 5 V/μs slew rate, and low distortion. All are guaranteed to operate from a 3 V single supply as well as a 5 V supply.

The very low input bias currents enable the AD853x to be used for integrators, diode amplification, and other applications requiring low input bias current. Supply current is only 750 μA per amplifier at 5 V, allowing low current applications to control high current loads.

Applications include audio amplification for computers, sound ports, sound cards, and set-top boxes. The AD853x family is very stable, and it is capable of driving heavy capacitive loads such as those found in LCDs.

The ability to swing rail-to-rail at the inputs and outputs enables designers to buffer CMOS DACs, or other wide output swing devices in single-supply systems.

The AD8531/AD8532/AD8534 are specified over the extended industrial temperature range (−40°C to +85°C). The AD8531 is available in 8-lead SOIC, 5-lead SC70, and 5-lead SOT-23 packages. The AD8532 is available in 8-lead SOIC, 8-lead MSOP, and 8-lead TSSOP surface-mount packages. The AD8534 is available in narrow 14-lead SOIC and 14-lead TSSOP surface-mount packages.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
