SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

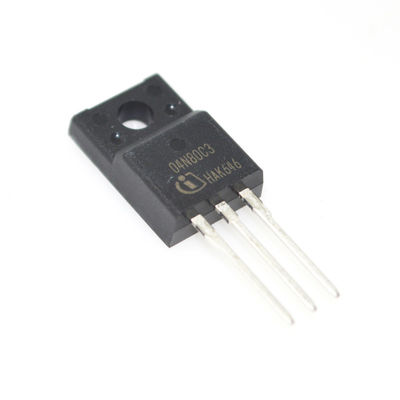

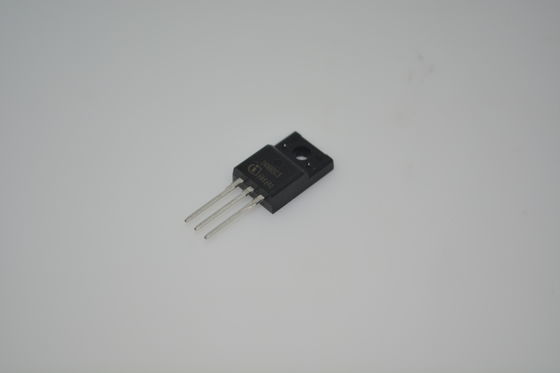

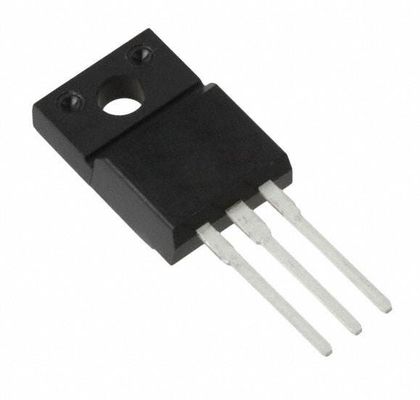

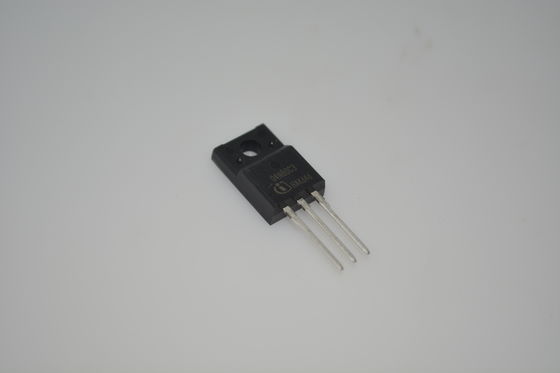

Ampliación de imagen : SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	Infineon
Certificación:	CE, GCF, ROHS
Número de modelo:	SPA04N80C3XKSA1

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	negotiable
Detalles de empaquetado:	Empaquetado en la bandeja original en primer lugar, luego Carton, al final de la bolsa de burbujas p
Tiempo de entrega:	3-5 días hábiles después de recibir el pago
Condiciones de pago:	T/T, Western Union,
Capacidad de la fuente:	1000pcs por mes

Contacto

Descripción detallada del producto

Función:	Agudo, baja hacia abajo	Configuración de salida:	Positivo o negativo
Topología:	Buck, Boost	Tipo de salida:	Ajustable
Número de salidas:	1

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Features

New revolutionary high voltage technology

Extreme dv/dt rated

High peak current capability

Qualified according to JEDEC1) for target applications

Pb-free lead plating; RoHS compliant

Ultra low gate charge

Ultra low effective capacitances

Fully isolated package (2500 VAC; 1 minute)

Applications

1:Switch Mode Power Supplies (SMPS)

2:Power Factor Correction (PFC) circuits

3:Industrial motor drives and controls

4:Lighting ballasts and LED drivers

5:Renewable energy systems

Description

The SPA04N80C3XKSA1 is a high-voltage N-channel power MOSFET utilizing advanced super junction technology, delivering exceptional efficiency and reliability for demanding power conversion applications.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	3.9V @ 240µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-31
Package / Case	TO-220-3 Full Pack
Base Product Number	SPA04N80

Drawing

Our advantage :phones, PDA's, notebook comput.ers

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^

Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,

The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
