BD7411G-TR 40V 3A Driver with 0.15Ω RON 97% Efficiency in WLCSP-6 Features Thermal/Current/UVLO Protection AEC-Q100 Grade 1 for Automotive Motor Control

BD7411G-TR 40V 3A Driver with 0.15Ω RON 97% Efficiency in WLCSP-6 Features Thermal/Current/UVLO Protection AEC-Q100 Grade 1 for Automotive Motor Control

Features

Versatility & Low Cost: Designed for a wide range of general-purpose analog circuits, offering high cost-effectiveness.

Wide Supply Voltage Range:

Single-Supply Operation: +3 V to +32 V

Dual-Supply Operation: ±1.5 V to ±16 V
This flexibility allows it to be used in both low-voltage, battery-powered devices and higher industrial voltage environments.

Low Power Consumption: Features a low typical quiescent supply current, making it suitable for battery-powered portable devices.

Gain Bandwidth Product: 1 MHz (Typ.), capable of handling audio and many sensor signal frequencies.

Small Package: The SOT-23-5 package occupies minimal PCB space, ideal for modern high-density board designs.

Internal Frequency Compensation: Requires no external compensation components, simplifying circuit design.

Large Output Voltage Swing: The output stage is designed to provide a relatively wide output voltage range closer to the supply rails.

Applications

Sensor Signal Conditioning (e.g., for temperature, pressure, light sensors)

Active Filters (low-pass, high-pass, band-pass)

Voltage Follower / Buffer

Comparator (in applications where high precision is not critical)

Small Signal Amplification

Integrators, Differentiators

Portable Electronic Devices

Industrial Control Systems

Description

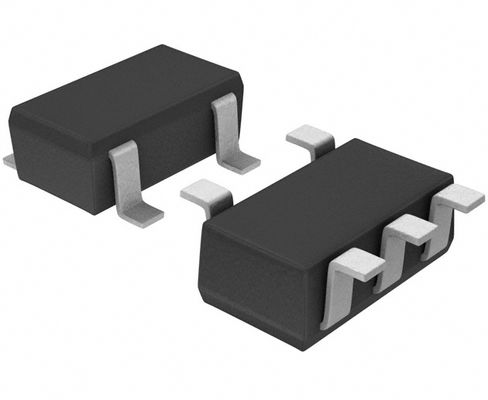

The BD7411G-TR is a general-purpose, low-power, single operational amplifier. It comes in a compact SOT-23-5 package, offering

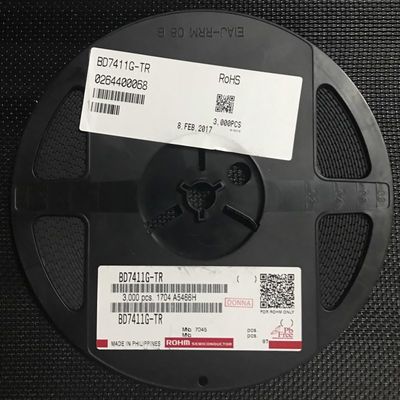

fundamental op-amp functionality with a good balance of cost, performance, and size. The "-TR" suffix typically indicates tape and reel

packaging for automated surface-mount assembly.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
