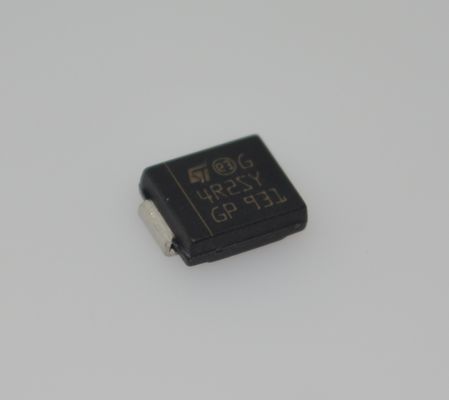

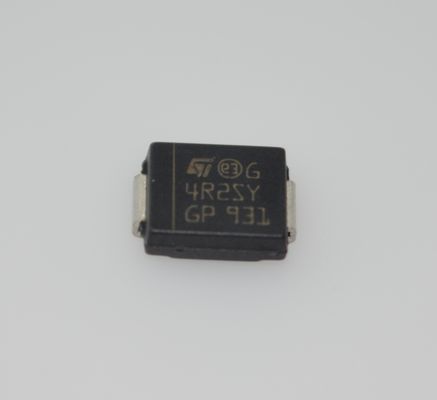

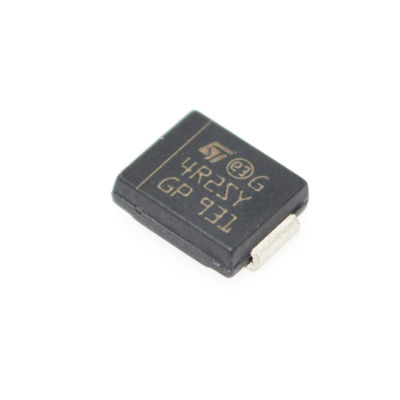

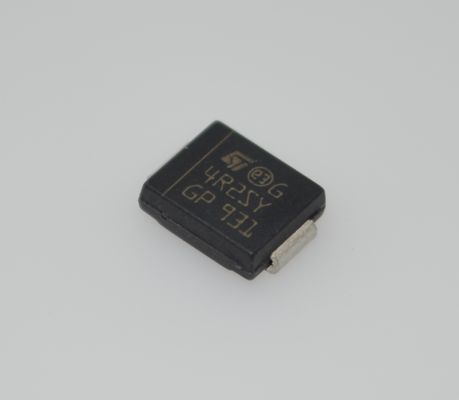

Ultra-Fast 75ns STTH4R02SY 4A 200V Power Rectifier Very Low Vf & Qrr High Temp Operation AEC-Q101 Qualified Halogen Free ESD Rugged DPAK Package

Ultra-Fast 75ns STTH4R02SY 4A 200V Power Rectifier Very Low Vf & Qrr High Temp Operation AEC-Q101 Qualified Halogen Free ESD Rugged DPAK Package

Features

Very low conduction losses

Negligible switching losses

Low forward and reverse recovery times

High junction temperature

PPAP capable

AEC-Q101 qualified

Applications

1:Switch-Mode Power Supplies

Explanation: This is the most classic application area. Its ultra-fast recovery time and low reverse recovery charge are crucial for improving the efficiency of high-frequency SMPS, reducing switching noise and stress.

Specific Applications: High-power-density AC-DC power supplies for servers/telecom equipment, industrial power supplies, and Power Factor Correction circuits in PCs.

2:Automotive Electronics

Explanation: As it is AEC-Q101 qualified, it can be used in the demanding automotive environment.

Specific Applications: On-board chargers for EVs/HEVs, DC-DC converters, auxiliary supplies and clamp circuits in motor drive inverters.

3:Industrial and Renewable Energy

Explanation: Its high reliability and high operating junction temperature make it suitable for harsh environments.

Specific Applications: High-frequency rectification and freewheeling paths in industrial motor drives, frequency converters, welding machines, and solar inverters.

4:Consumer Electronics

Explanation: Suitable for high-end consumer power supplies with extreme efficiency requirements.

Specific Applications: Power boards for high-end gaming consoles, high-power audio amplifiers, and large LCD TVs.

Description

This device uses ST's new 200 V planar Pt doping technology, and it is especially suited for switching mode base drive and transistor circuits.

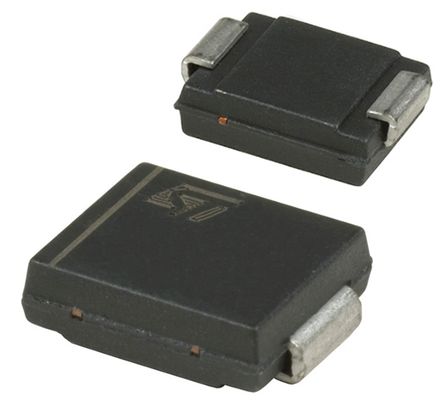

Packaged in SMB, SMC and DPAK, it is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection in automotive applications.
